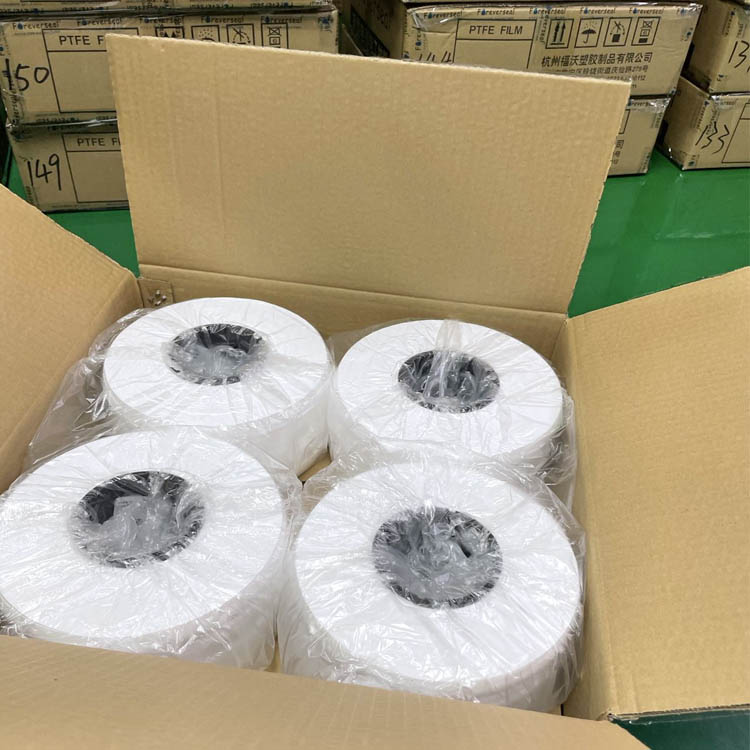

Paste extruded PTFE FILM/TAPE for low loss coaxial cable
| Density: | |
|---|---|
| Thickness: | |
| Width: | |
| Material: | |
| Quantity: | |
FS-6
Paste extruded ptfe tape produce micropore through stretch and under a certain specific and tightly controlled conditions to achieve low dielectric constant and high tensile strength for miltary area, MIL-C-17
It's light、soft、flame retardant and the low dielectric constant makes low density PTFE tapes for high frequency microwave coaxial cable applications in data transfer,militarty and medical field.
--- PRODUCT DETAILS ---
Technical data:
Thickness | 0.0020" | 0.0025" | 0.0030" | 0.0035" | 0.0040" | 0.0050" | 0.0100" |
0.051mm | 0.064mm | 0.076mm | 0.089mm | 0.102mm | 0.127mm | 0.254mm | |
Tolerance | ±0.00020" | ±0.00020" | ±0.00020" | ±0.00020" | ±0.00025" | ±0.00030" | ±0.00040" |
±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm | ±0.006mm | ±0.0076mm | ±0.010mm | |
Width | 5mm - 200mm (±2%) | ||||||
Density | 0.50g/cm3 - 0.90g/cm3 (±0.05g/cm3) | ||||||
Tensile Strength（minimum） | 12 MPa | ||||||
Elongatio （minimum) | 70% | ||||||
Joint Free Lengths | > 50m | ||||||
--- FEATURES---
▶ High temperature and chemical resistance
▶ Flammability resistivity
▶ High porosity results in superior dielectric properties
▶ High tensile strengths that support fast wrapping speeds
▶ Long joint free lengths
▶ RoHS and REAH compliant
--- APPLICATION---
▶ Wire and cable insulation for extreme chemical and thermal environments
▶ Binder tape in cable constructions and wire harnesses
▶ Dielectric material in coaxial cables
▶ Convoluted hose constructions
▶ And more
--- WHY CHOOES US ---
EXPERIENCE Focus on ptfe tape production forever since 1997. |
PROFESSIONAL Covering area of 6600m3, now we have over 60 workers, a team of qualified engineers and professional sales group. |
QUALITY Automatic machines can provide good quality product. |
SERVICE On-time shipment with best service |
