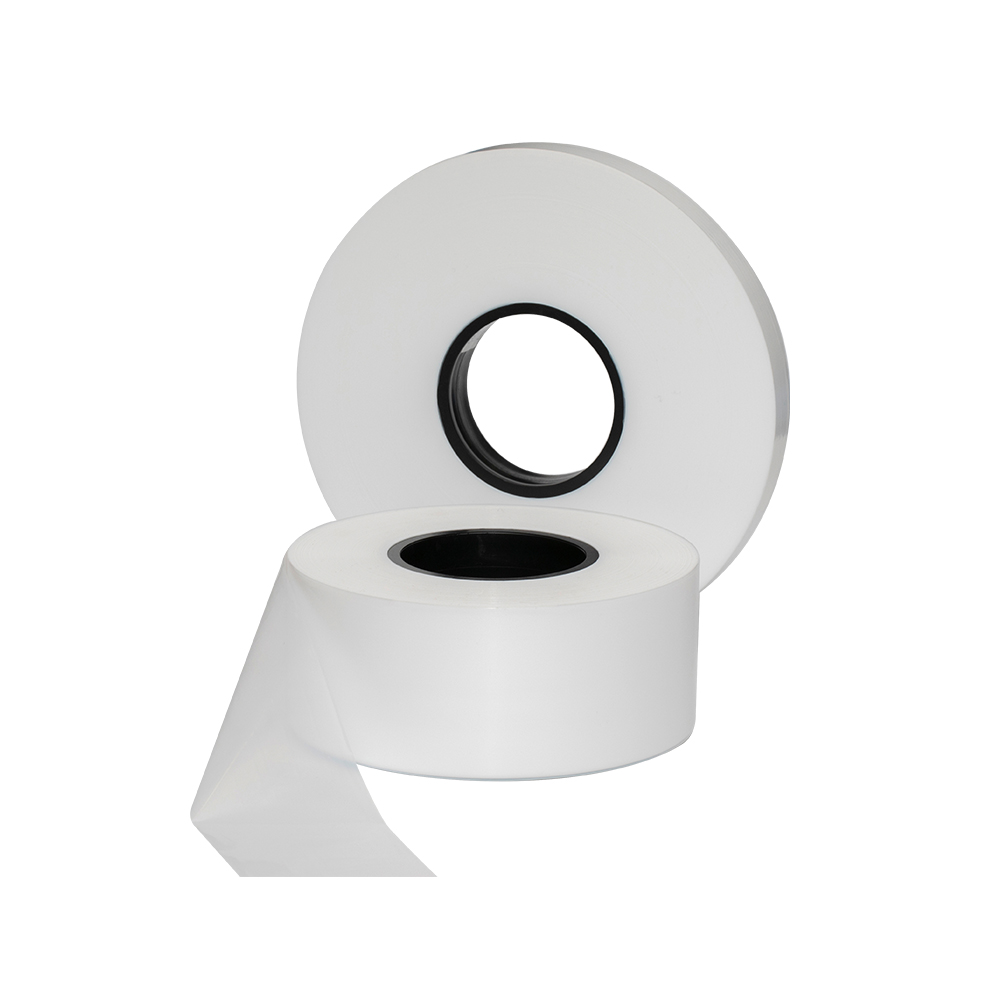

Skived PTFE tapes are produced by processing virgin moulded PTFE through moulding and sintering to achieve the desired thickness with tight tolerance control.
Density: | |
---|---|
Thickness: | |
Width: | |
Material: | |
Availability: | |
Quantity: | |
SD-1
forevertape
Skived PTFE tape is widely used in industries due to the material's outstanding characteristics, including heat and chemical resistance, dielectric strength and anti-stick properties.
--- PRODUCT DETAILS ---
Technical data:
Thickness | 0.0020" | 0.0025" | 0.0030" | 0.0035" | 0.0040" | 0.0050" | 0.0100" |
0.051mm | 0.064mm | 0.076mm | 0.089mm | 0.102mm | 0.127mm | 0.254mm | |
Tolerance | ±0.00020" | ±0.00020" | ±0.00020" | ±0.00020" | ±0.00025" | ±0.00030" | ±0.00040" |
±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm | ±0.006mm | ±0.0076mm | ±0.010mm | |
Width | 5mm - 120mm (±2%) | ||||||
Density | 2.15g/cm3 (±0.05g/cm3) | ||||||
Tensile Strength(minimum) | 35 MPa | ||||||
Elongatio (minimum) | 120% | ||||||
Joint Free Lengths | > 500m |
--- FEATURES---
▶ High temperature resistance
▶ Superior electrical properties
▶ Weather and ageing resistance
▶ Chemical resistance and inertness
▶ Non-flammable
▶ RoHS and REAH compliant
--- APPLICATION---
▶ Wire and cable insulation for extreme chemical and thermal environments
▶ Binder tape in cable constructions and wire harnesses
▶ Dielectric material in coaxial cables
▶ Convoluted hose constructions
▶ And more
--- WHY CHOOES US ---
EXPERIENCE Focus on ptfe tape production forever since 2009. | PROFESSIONAL Covering area of 6600m3, now we have over 60 workers, a team of qualified engineers and professional sales group. | QUALITY Imported machines can provide good quality product. | SERVICE On-time shipment with best service |
Skived PTFE tape is widely used in industries due to the material's outstanding characteristics, including heat and chemical resistance, dielectric strength and anti-stick properties.
--- PRODUCT DETAILS ---
Technical data:
Thickness | 0.0020" | 0.0025" | 0.0030" | 0.0035" | 0.0040" | 0.0050" | 0.0100" |
0.051mm | 0.064mm | 0.076mm | 0.089mm | 0.102mm | 0.127mm | 0.254mm | |
Tolerance | ±0.00020" | ±0.00020" | ±0.00020" | ±0.00020" | ±0.00025" | ±0.00030" | ±0.00040" |
±0.005mm | ±0.005mm | ±0.005mm | ±0.005mm | ±0.006mm | ±0.0076mm | ±0.010mm | |
Width | 5mm - 120mm (±2%) | ||||||
Density | 2.15g/cm3 (±0.05g/cm3) | ||||||
Tensile Strength(minimum) | 35 MPa | ||||||
Elongatio (minimum) | 120% | ||||||
Joint Free Lengths | > 500m |
--- FEATURES---
▶ High temperature resistance
▶ Superior electrical properties
▶ Weather and ageing resistance
▶ Chemical resistance and inertness
▶ Non-flammable
▶ RoHS and REAH compliant
--- APPLICATION---
▶ Wire and cable insulation for extreme chemical and thermal environments
▶ Binder tape in cable constructions and wire harnesses
▶ Dielectric material in coaxial cables
▶ Convoluted hose constructions
▶ And more
--- WHY CHOOES US ---
EXPERIENCE Focus on ptfe tape production forever since 2009. | PROFESSIONAL Covering area of 6600m3, now we have over 60 workers, a team of qualified engineers and professional sales group. | QUALITY Imported machines can provide good quality product. | SERVICE On-time shipment with best service |
--- ABOUT US ---
Hangzhou Forever Plastics Co., Ltd located in Linan, Hangzhou, China. It is a professional manufacturer and exporter of high quality PTFE tape, which was established in 2009. Not the largest one, but the best one you need. |
Forever Seal, Forever Real, Forever Deal is our mission, we believe our good quality and professional customer service can maintain long term stable business with our clients. If you are interested in our goods, please contact us freely. Welcome to visit our factory! |
--- OUR CERTIFICATE ---
Our products have passed EMTEK, UL, WRAS, ISO9001.
EMTEK | UL | WRAS | ISO9001 |
