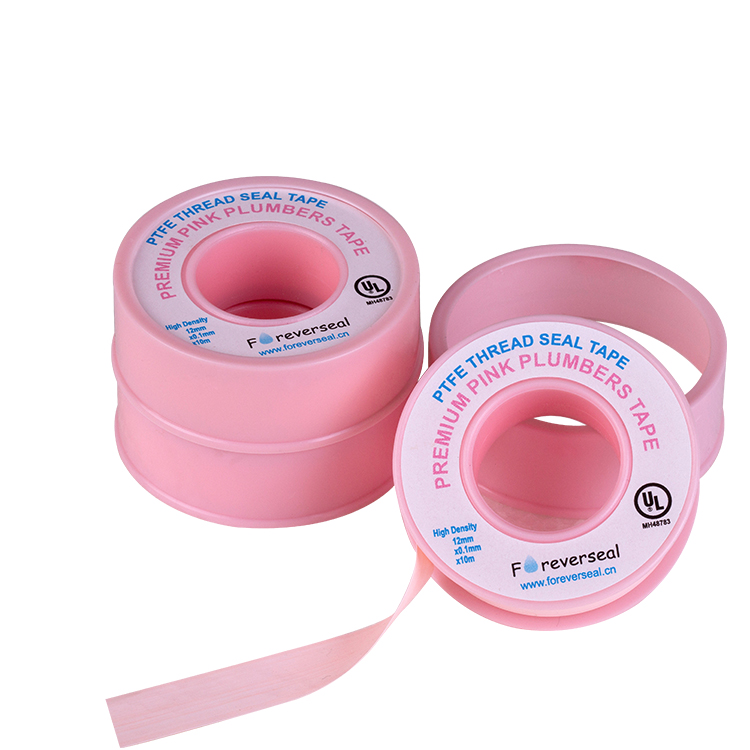

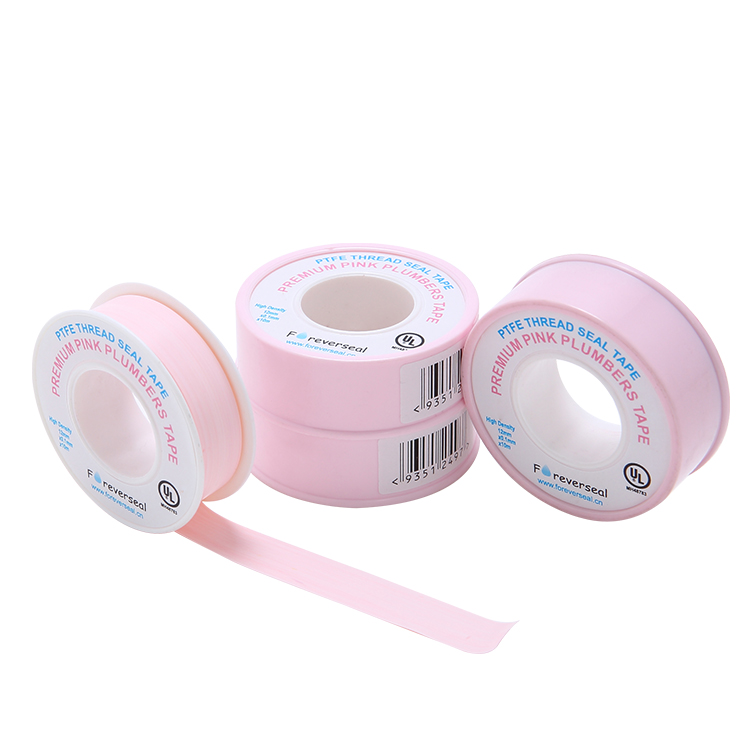

Pink Plumber Line Thread Seal Tape is a full density thread seal tape for used with piping in air,water,sewage,hydraulic lines and sprinkler systems.
| Thickness: | |
|---|---|
| Width: | |
| Length: | |
| Density(g/cm3): | |
| Quantity: | |
12mmx0.1mmx10m
FOREVERSEAL
TF12-10P
--- PRODUCT DETAILS ---
| Composition: | Min. 99% virgin PTFE, Max. 1% pigment |
| Temp.Range: | -190C to +370C |
Water pressure resistance: | 16N/mm2(8MPa) |
Tensile Strength: | 8N/mm2（8MPa) |
Elongation: | Min 25% |
Flammability: | Non-flammable |
Storage: | Unlimited shelf life (less than 70F recommended)/50% relative humidity out of direct sunlight. |
--- APPLICATION ---
PTFE seal tape is appropriate for use in pipes and fittings for plumbing and gas connections such as pipe threads, thread on pipe fittings etc. As a sealing material widely, it is used in industrial applications, civil-construction, machinery, chemicals, and space navigation especially in drainage systems.
|
|
|
--- DIRECTIONS FOR USE ---
For threads up to 1-½” diameter, use ½” width of thread seal tape. For larger diameter threads, use ¾” width of thread seal tape.
▶ 1. Clean the male and female threads thoroughly.
▶ 2. Wrap the PTFE tape around the male thread. Take care to keep the tape under tension as you are wrapping so the tape moulds itself into root of the thread.
▶ 3. Make sure that you wrap with the thread.
▶ 4. Make sure that the PTFE tape does not overlap the end of the fitting.
|
|
--- WHY CHOOES US ---
EXPERIENCE Focus on ptfe tape production forever since 1997. |
PROFESSIONAL Covering area of 6600m3, now we have over 60 workers, a team of qualified engineers and professional sales group. |
QUALITY Automatic machines can provide good quality product. |
SERVICE On-time shipment with best service |
